ROBOT LEARNING

ACTION-DRIVEN VISUAL SIMULATION

WorldLine

Action-Driven Visual Simulation for Robotic Manipulation

A visual simulator that predicts how robot actions change the scene. WorldLine separates learning robot–object dynamics from learning how each robot’s controls should steer them.

Shenghe Zheng1Wenbo Li2,†Jiyao Zhang3Bin Xia4Haoyang Huang2Nan Duan2Jiaya Jia1,‡

† Project Lead · ‡ Corresponding Author

Paper Code

INFERENCE Action-grounded predictions are conditioned on visual observations and image-space actions—not task text.

WORLDLINE AT A GLANCE

Overview

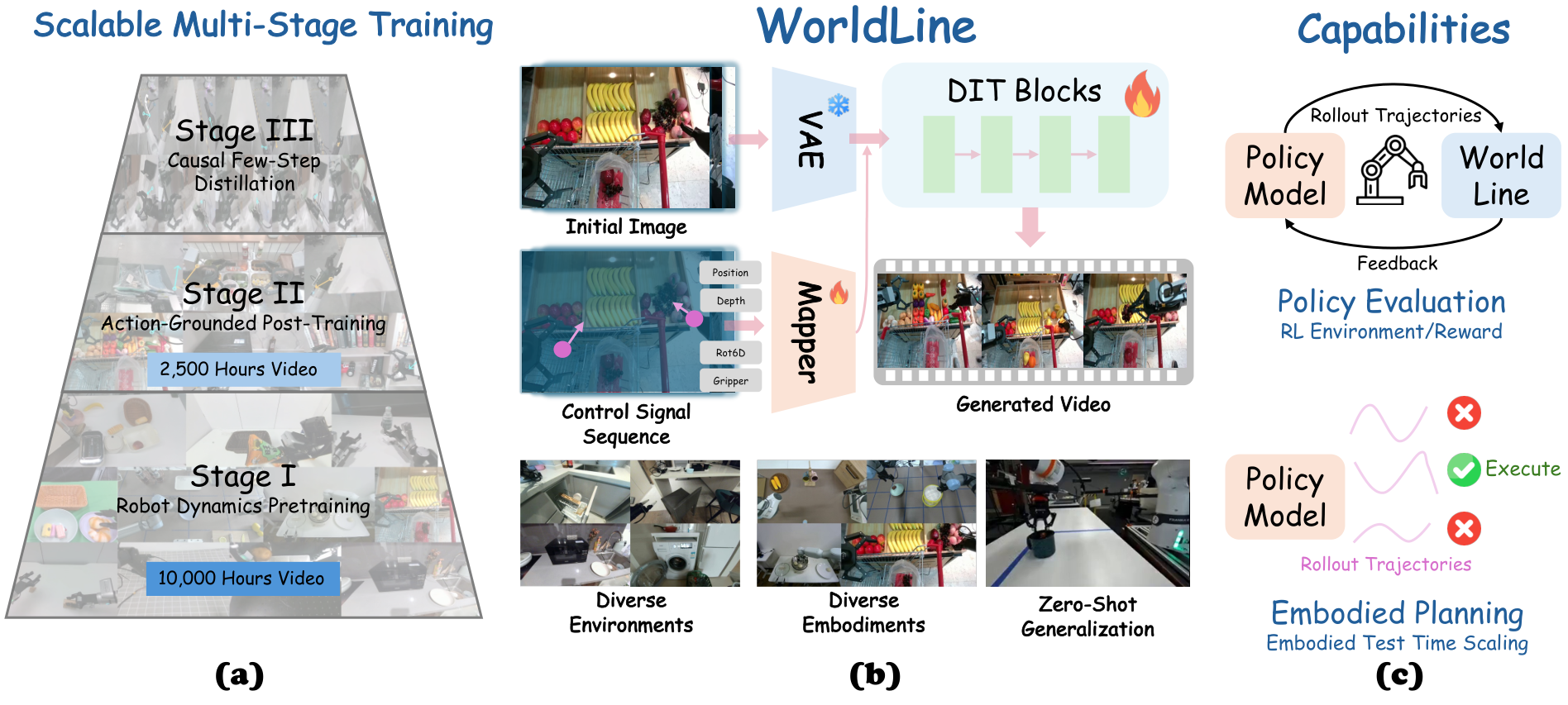

WorldLine teaser: action-conditioned robot manipulation predictions across camera views and embodiments
WorldLine predicts action-conditioned visual futures across robot embodiments and camera views.

WorldLine is an action-driven visual simulator for predicting robot manipulation before physical execution. It separates transferable dynamics learning from action grounding: broad action-free robot video teaches how robots and objects interact, while calibrated action trajectories connect those dynamics to each robot’s controls.

An image-space action representation provides a shared interface across embodiments. Multi-view and failure-enriched training, relational regularization, and robot-focused few-step distillation improve interaction-sensitive prediction and efficient causal rollout—supporting policy evaluation and embodied planning.

PERFORMANCE AT A GLANCE

Scale, fidelity, and downstream utility

Key figures reported in the paper across training data, held-out evaluation, and out-of-domain planning.

THE WORLDLINE APPROACH

How WorldLine works

WorldLine combines transferable manipulation dynamics learned from large-scale robot video with an image-space action interface that grounds controls across embodiments.

01STAGE I

Pretrain on robot dynamics

Adapt a video model on more than 10,000 hours of action-free robot video. It learns how robots and objects move and interact before receiving control supervision.

TRANSFERABLE DYNAMICS PRIOR
02STAGE II

Ground actions in image space

Project each robot’s end-effector position, depth, orientation, and gripper state into calibrated camera views. These spatial action maps give different embodiments a shared visual control interface.

2,000+ HOURS · 10+ EMBODIMENTS
03STAGE III

Roll out futures causally

Distill the simulator into a block-autoregressive model that accepts updated actions as it predicts. Four denoising steps generate each block, keeping rollouts practical for interactive use.

4-STEP · ONLINE-ACTION ROLLOUT
A

One action language across robots

Native controls differ in dimensions and coordinate systems. WorldLine uses robot kinematics and camera calibration to express them as aligned spatial maps, preserving where and how the robot is expected to move.

B

Train for interaction, not appearance alone

Synchronized head and wrist views, failure trajectories, and relational regularization teach the model to preserve robot–object interactions across time and viewpoints—not just plausible backgrounds.
